Product Details

SKU: KWM0000080Z000SBrand: kwmobileManufacturer: UniversellMaterial 1: Electronics/Plastic casingDimensions:2 cm x 3.8 cm x 5 cm
(H x W x L)Weight: 31 gCountry of origin: ChinaWith stand function: NoWith card slot: NoWith design: No

Description

kwmobile - For smart electronicsEASY TO USE

  • The kwmobile 2-channel 5V relay interface board makes it easy to control various devices with high current or high load.
WELL EQUIPPED
  • The 2-channel relay is equipped with high-current relays, AC250V 10A; DC30V 10A standard interface, which can be controlled directly by the microcontroller.
WITH LED INDICATOR AND EXTRA PROTECTION
  • An LED indicator is attached to the module to read the relay output status. In addition, the module is equipped with optocoupler protection.
COMPATIBLE WITH
  • Arduino, 8051, AVR, PIC,DSP, ARM, ARM, MSP430, TTL logic and much more.
WE ARE ALWAYS THERE FOR YOU
  • When you purchase a kwmobile product, you also benefit from the help and support of our customer service.
TECHNICAL DATA
  • Number of relays: 2
  • Relay type: Changeover switch
  • Control current: 15-20 mA // Coil current consumption: approx. 70 mA // Control input current consumption: approx. 4 mA
  • Supply voltage (VCC): 5 V
  • Switching capacity DC voltage // AC voltage: 250 V AC / 10 A // 30 V DC / 10 A
  • Coil resistance approx. 70 Ohm /

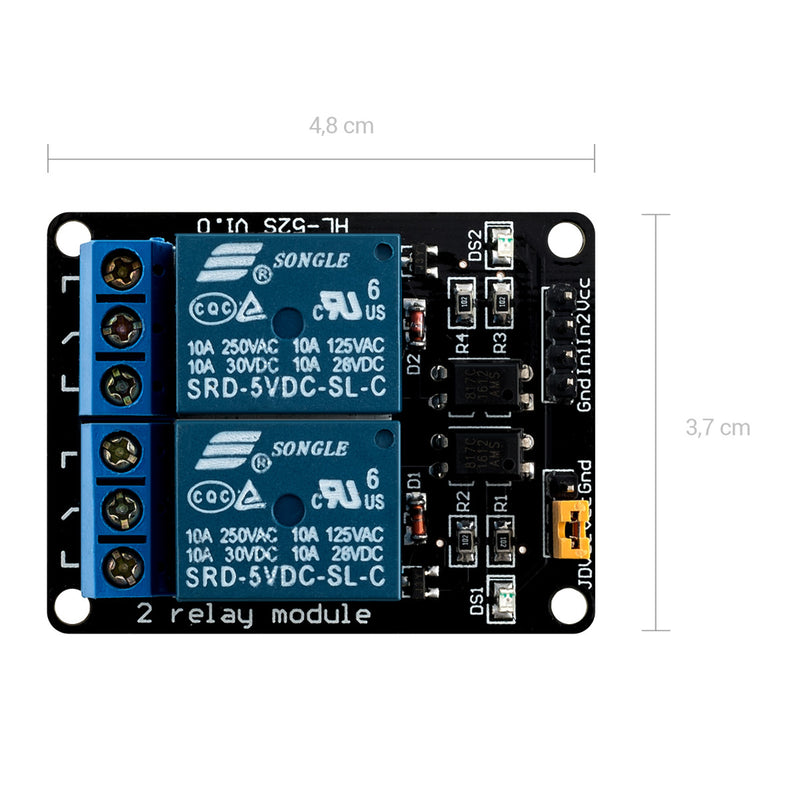

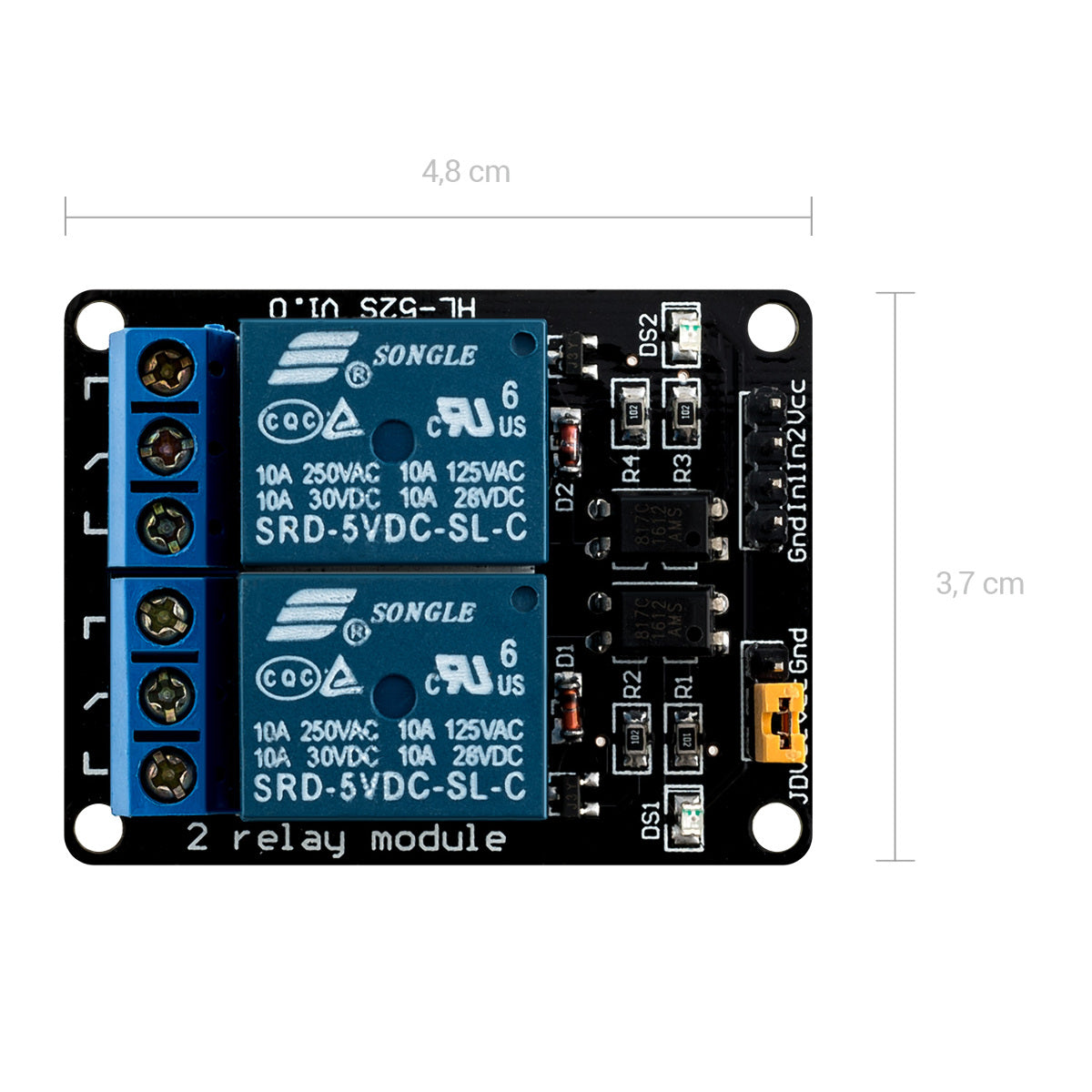

  • Dimensions (LxWxH): 50 x 38 x 20 mm // Weight: 31 g
SCOPE OF DELIVERY

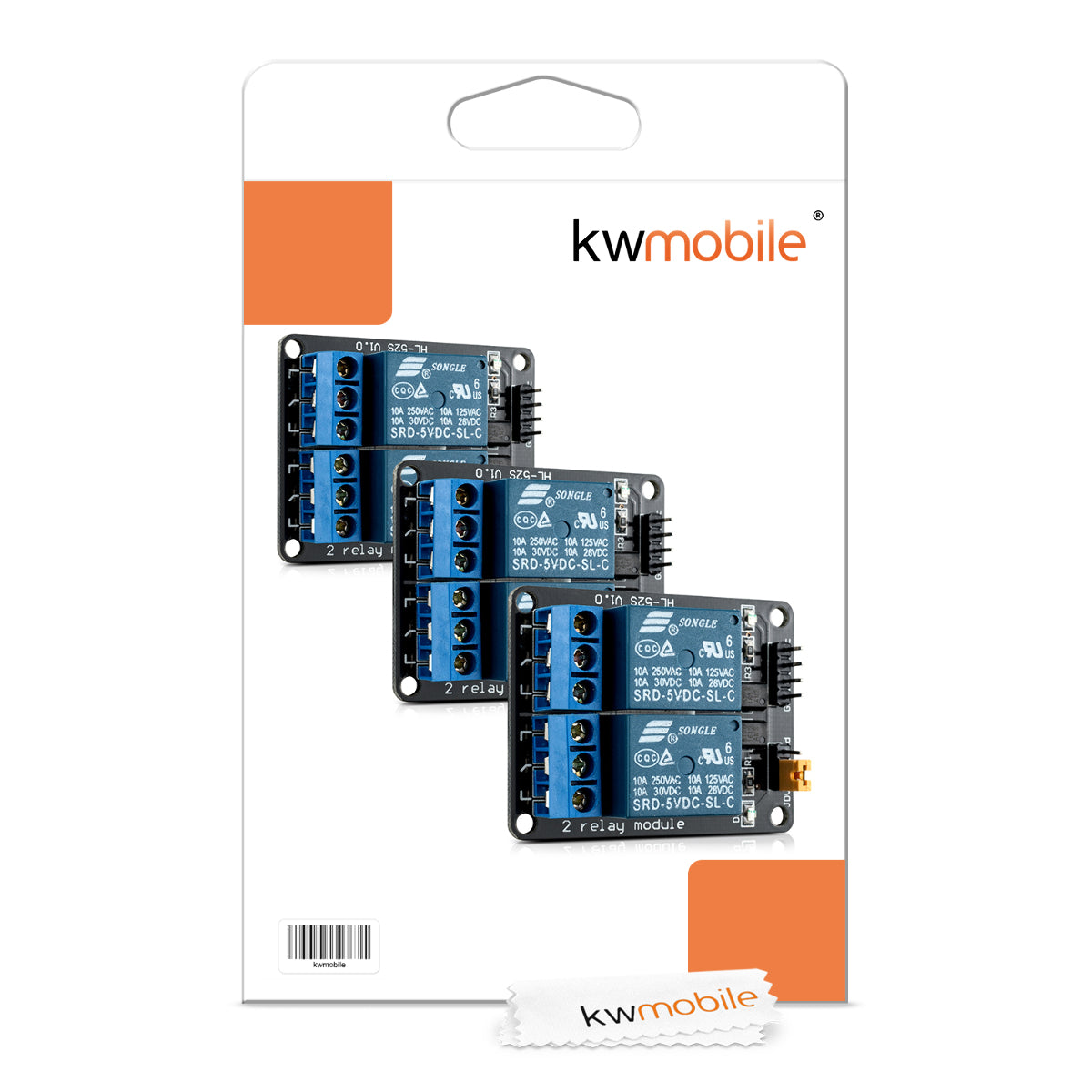

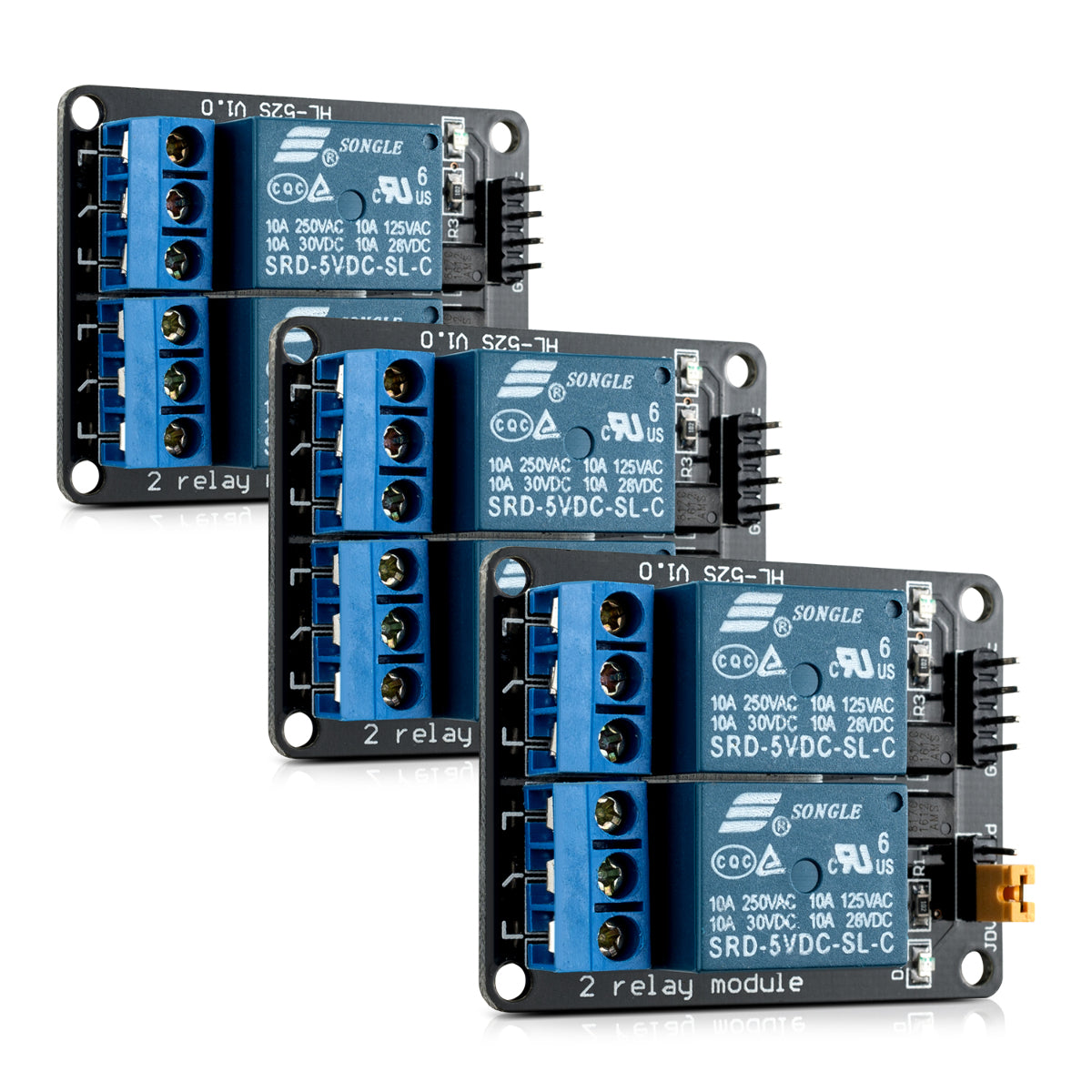

  • 3x kwmobile 2 Channel Relay Module
