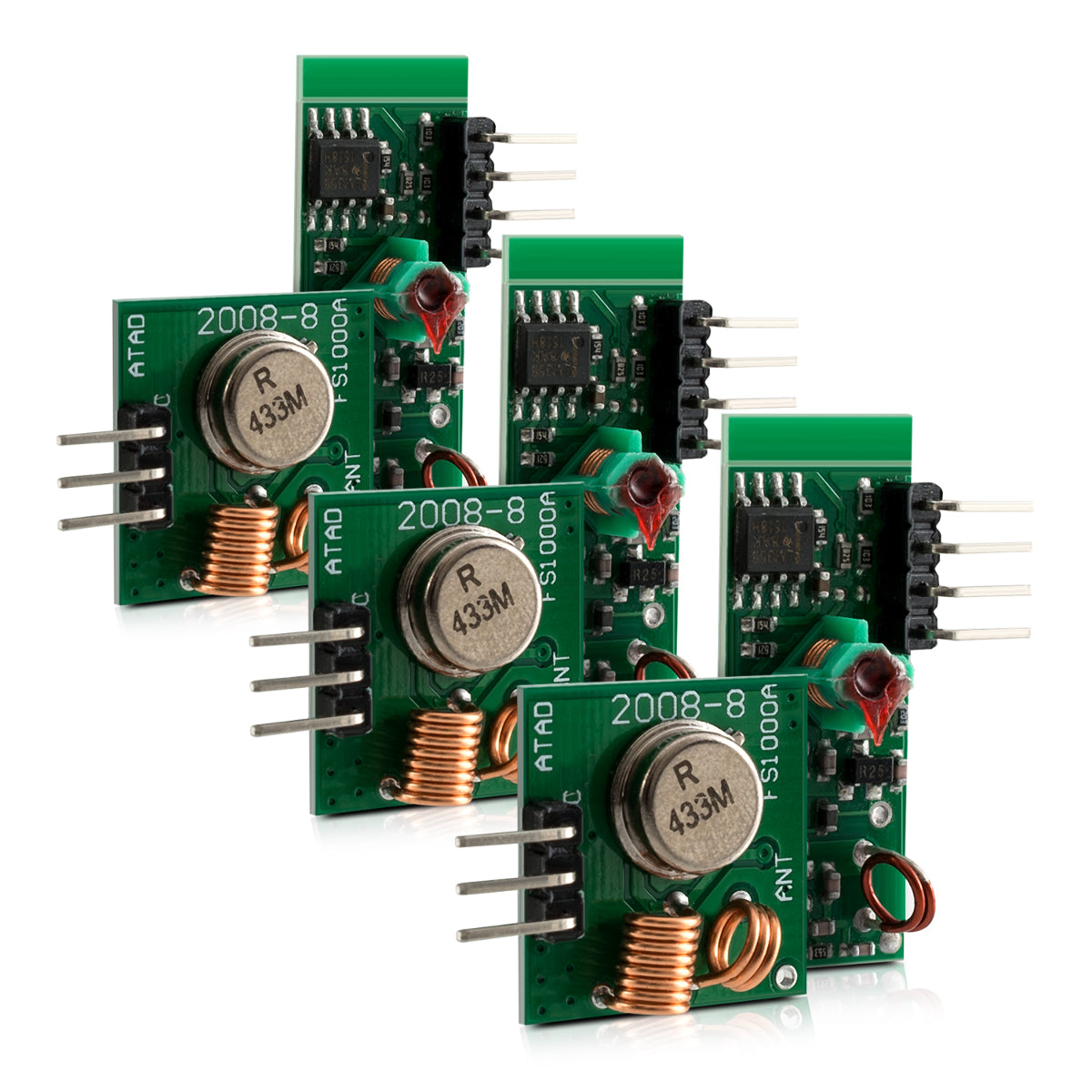

3x kwmobile 433 MHz Sender Empfänger Funk Modul für Arduino und Raspberry Pi - Wireless Transmitter Module Grün
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x kwmobile 433 MHz Sender Empfänger Funk Modul für Arduino und Raspberry Pi - Wireless Transmitter Module Grün
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver
3x 433MHz Transmitter/Receiver

3x 433MHz Transmitter/Receiver

£7.49 GBP
£7.49 GBP
Sale Sold out

Shipping costs are included in the price unless otherwise stated

(Shipping)
In Stock

Estimated Delivery: 3–5 Business Days

Product Details

SKU: KWM0000081B000SBrand: kwmobileManufacturer: UniversellMaterial 1: Electronics/Plastic casingDimensions:0.7 cm x 1.9 cm x 2.7 cm
(H x W x L)Weight: 12 gCountry of origin: ChinaWith stand function: NoWith card slot: NoWith design: No

Description

kwmobile - For smart electronicsVARIABLE USE

  • The kwmobile 433 MHz radio module is ideal for many types of wireless remote control devices. It can also be used with an external antenna (not included).
EXAMPLES OF USE
  • The module can be used in many ways. For example, with radio-controlled sockets, alarm systems, lights, and much more. Let your creativity run wild.
NOTE
  • To increase the reception range, you should solder/plug a copper wire to the XY-FST at the ANT contact point.
COMPATIBILITY
  • Compatible with Raspberry Pi and Arduino devices.
WE ARE ALWAYS THERE FOR YOU
  • When purchasing a kwmobile product, you also benefit from the help and care of our customer service.
TECHNICAL DATA

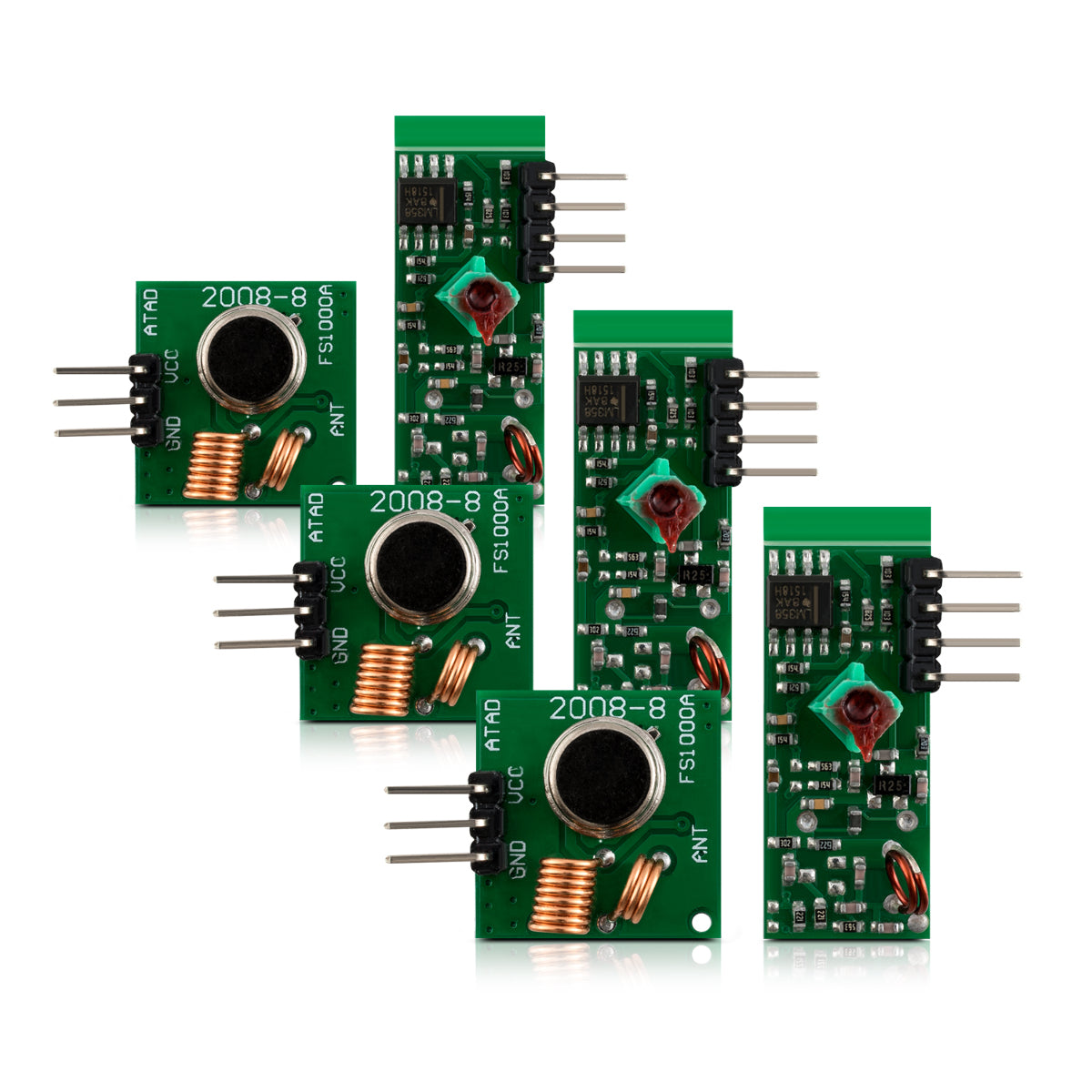

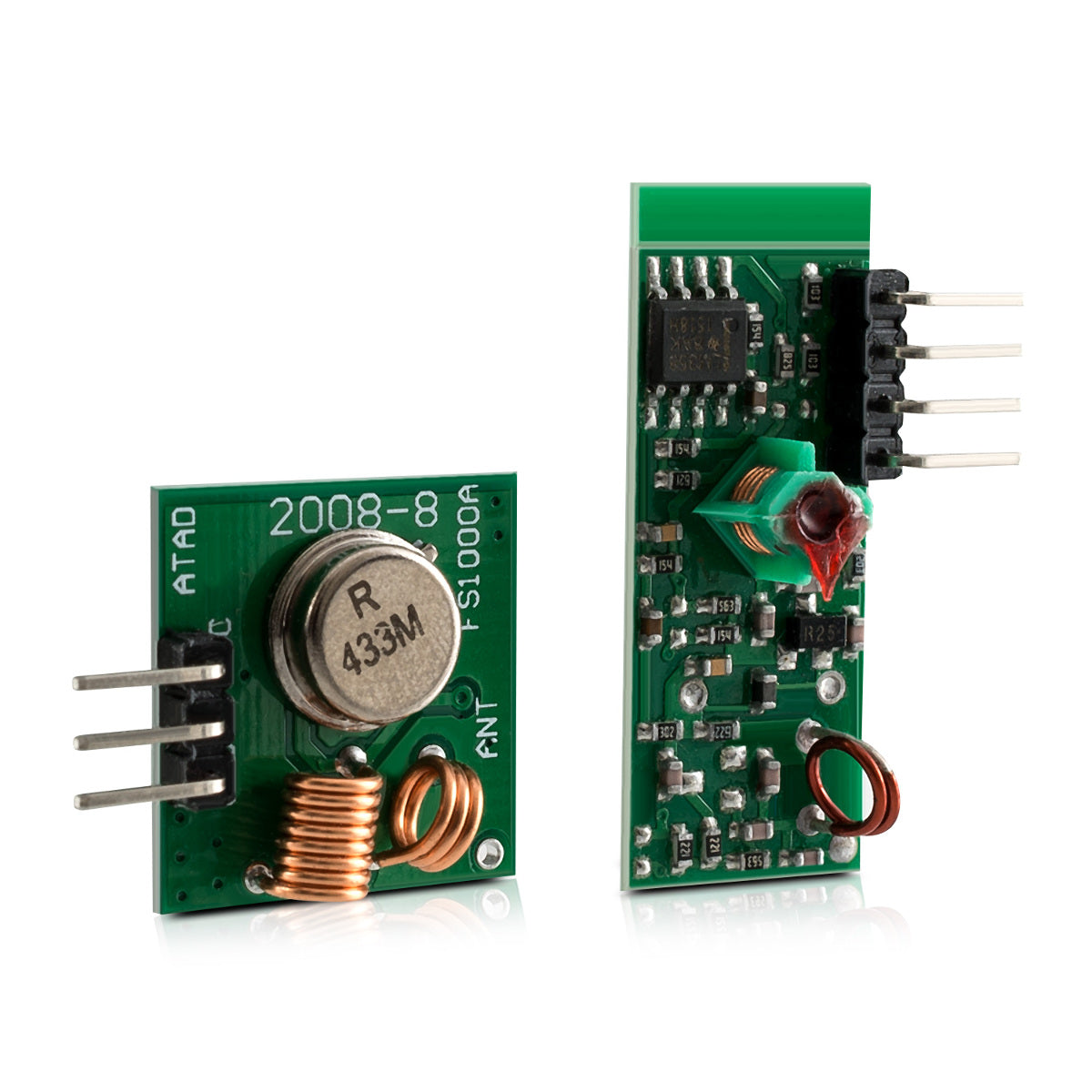

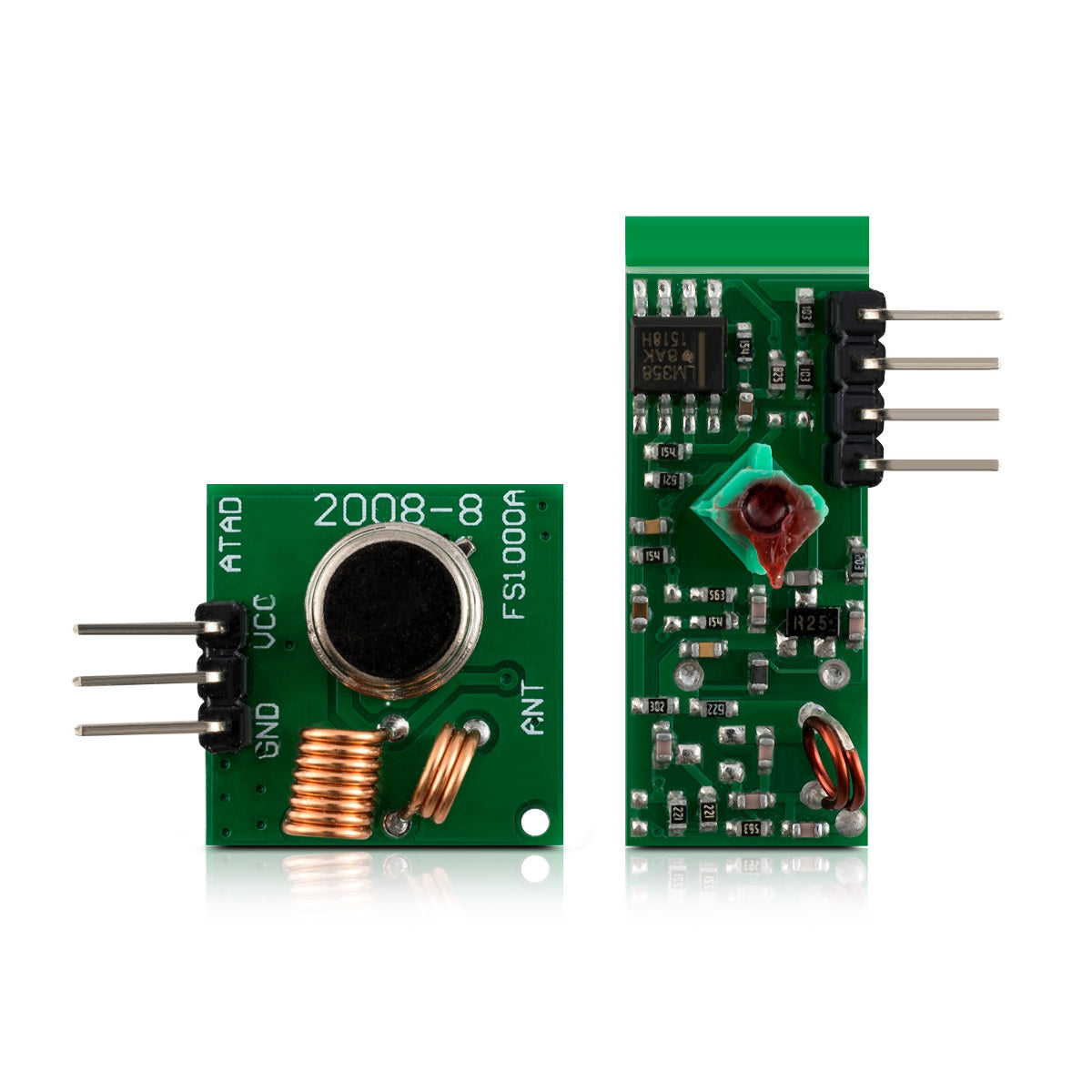

  • Transmitter: MX-FS-03V / Receiver: MX-05V
  • Operating voltage transmitter: 3.5 - 12V DC / receiver: 5V DC
  • Range: 20 - 200m (depending on operating voltage)
  • Operating mode: AM / Sensitivity: -105dB
  • Transmitting power: 10mW / Transmitting and receiving frequency: 433Mhz
  • Transmission rate: 4 KB / S / Quiescent current: 4 mA

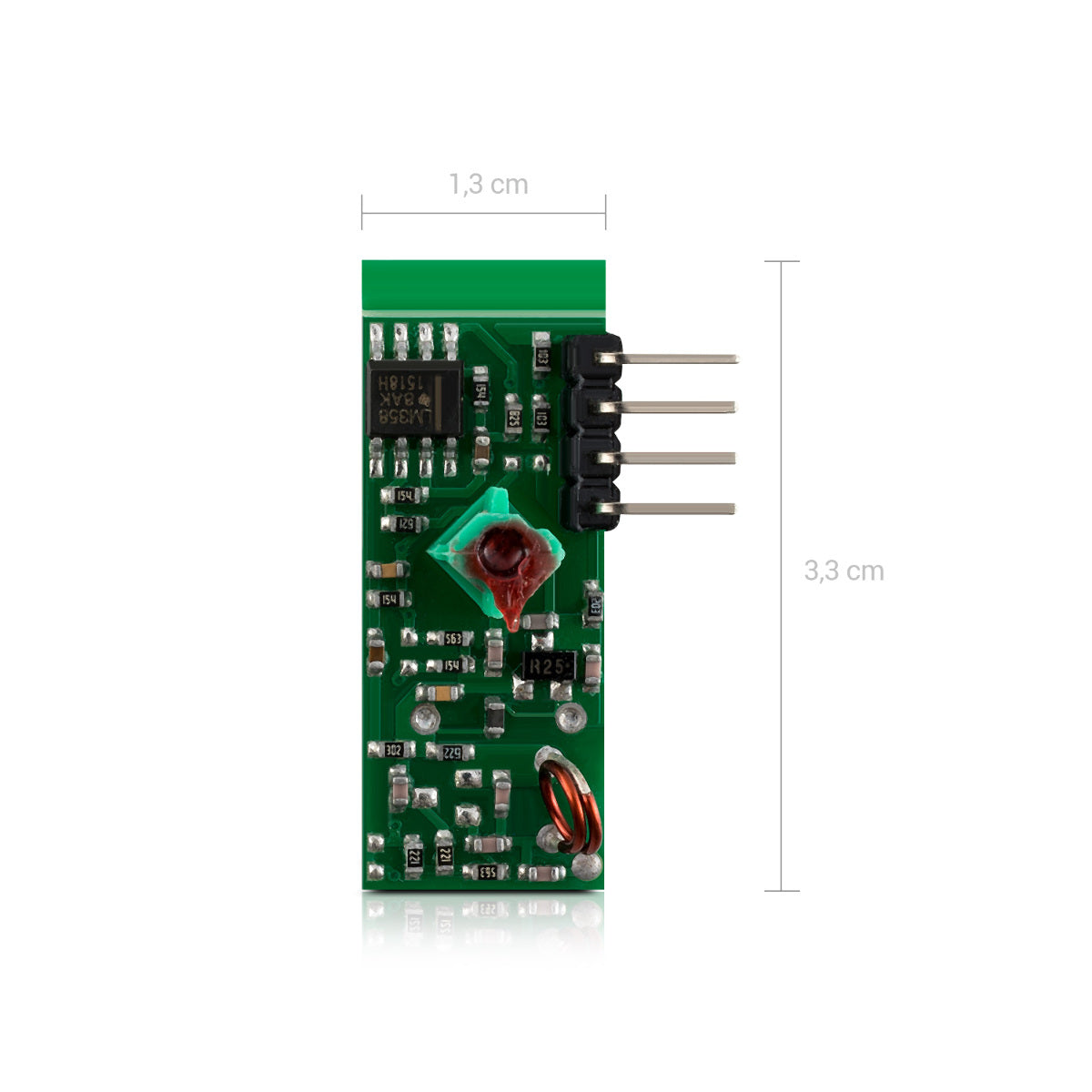

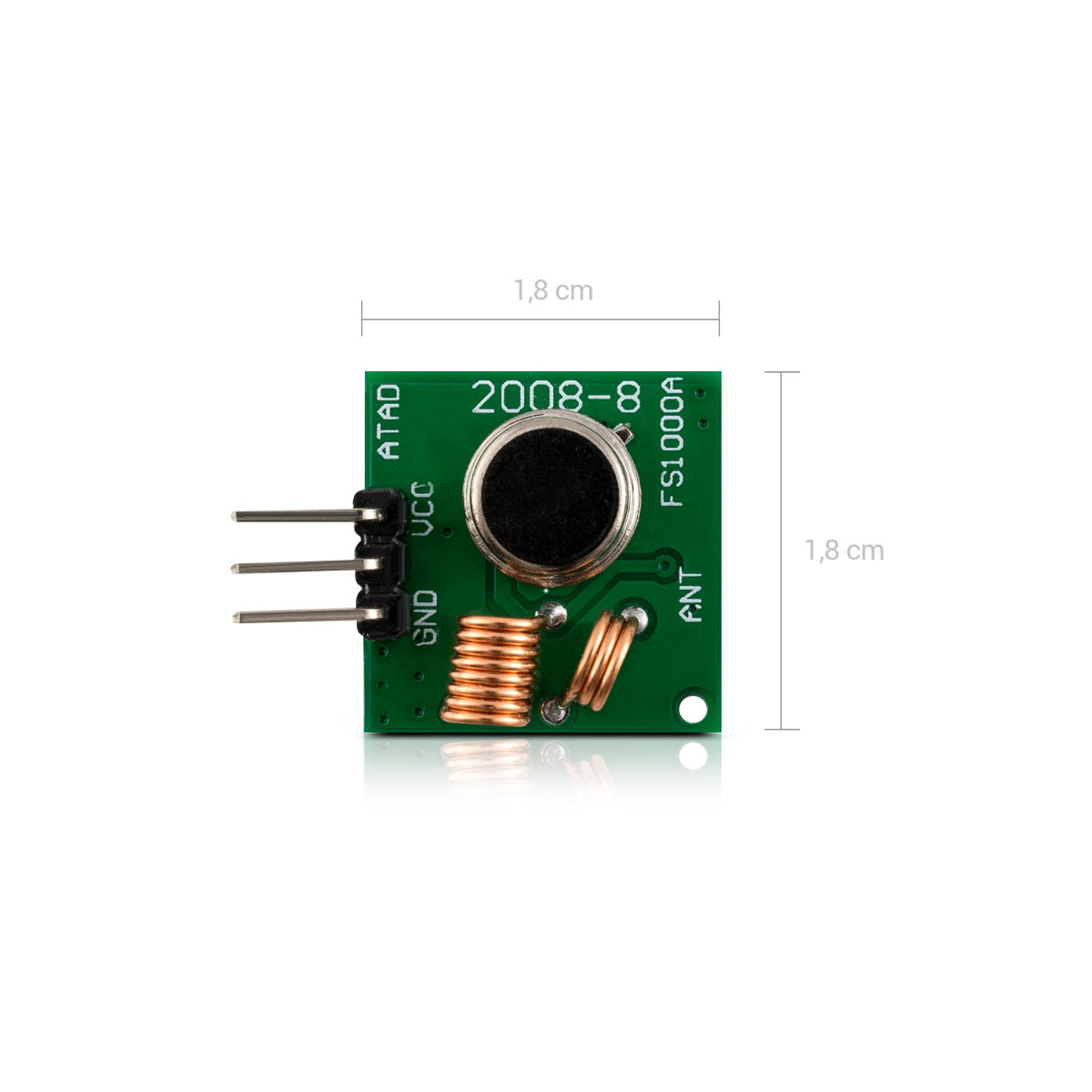

  • Dimensions transmitter: 19 x 19mm / receiver: 30 x 14mm / Pin assignment: Data, VCC, Ground (from left to right)
SCOPE OF DELIVERY

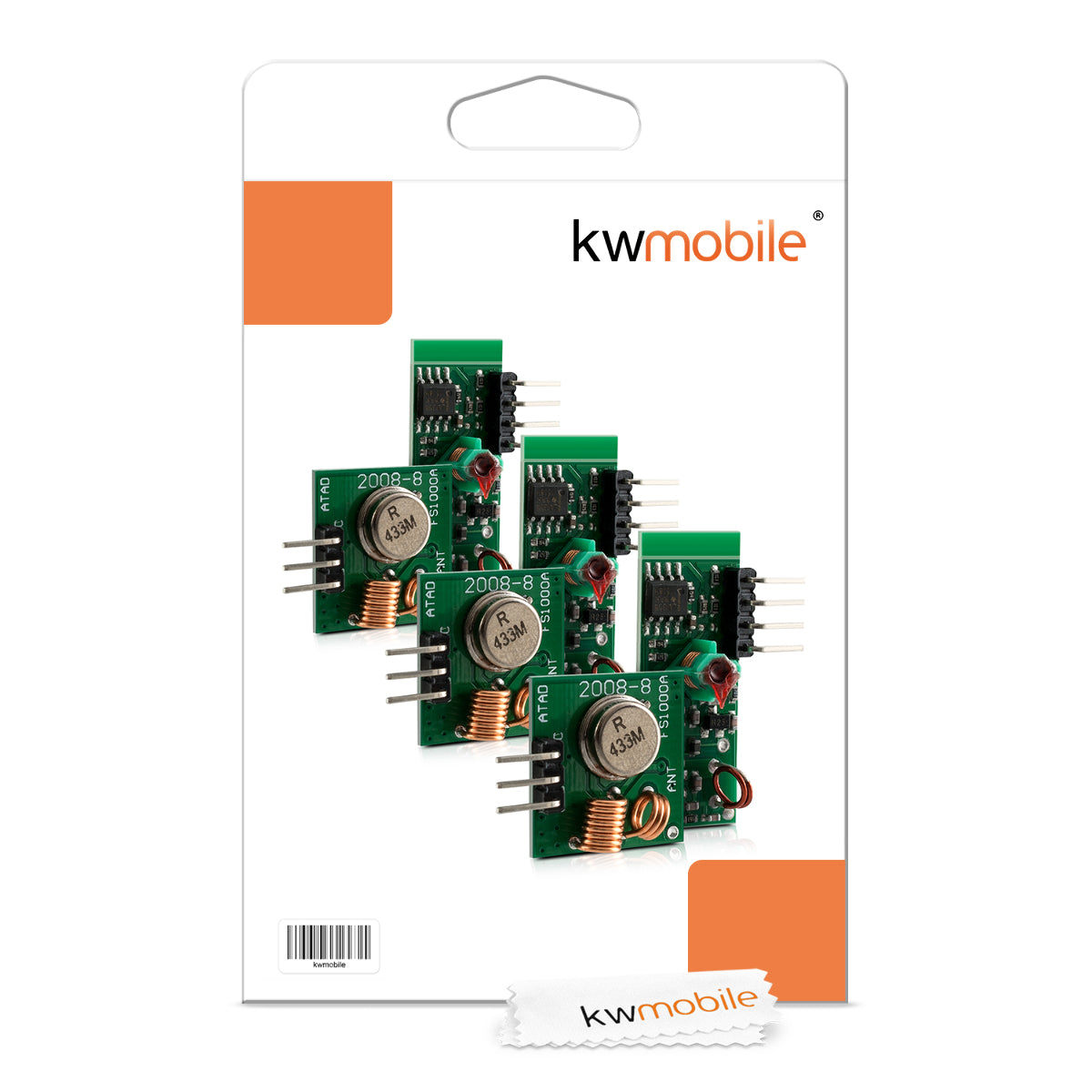

  • 3x kwmobile 433 MHz Transmitter Receiver Radio Module
